Our Products

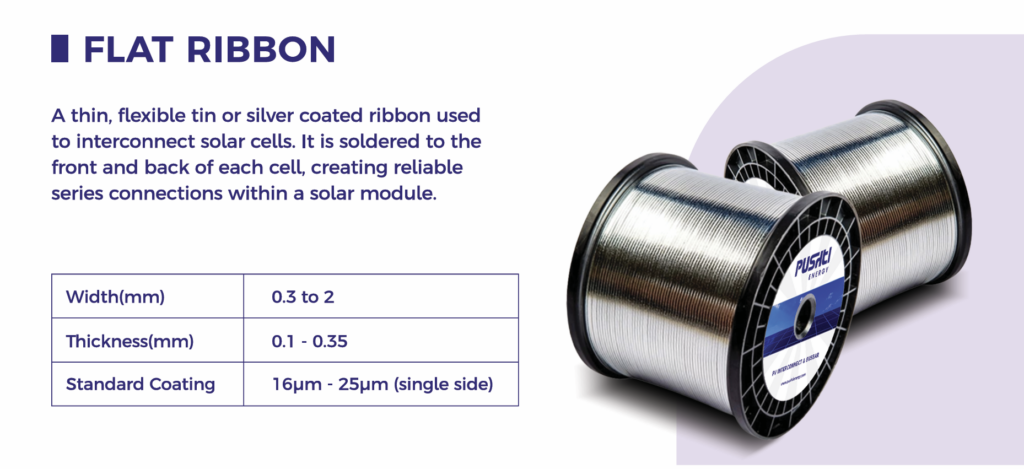

FLAT RIBBON
A thin, flexible tin or silver coated ribbon used
to interconnect solar cells. It is soldered to the
front and back of each cell, creating reliable
series connections within a solar module.
Enhance user experience with Advanced Tabs, allowing seamless content navigation. Organize information efficiently while keeping the interface clean and interactive. Perfect for FAQs, product details, or multi-section content.
Enhance user experience with Advanced Tabs, allowing seamless content navigation. Organize information efficiently while keeping the interface clean and interactive. Perfect for FAQs, product details, or multi-section content.

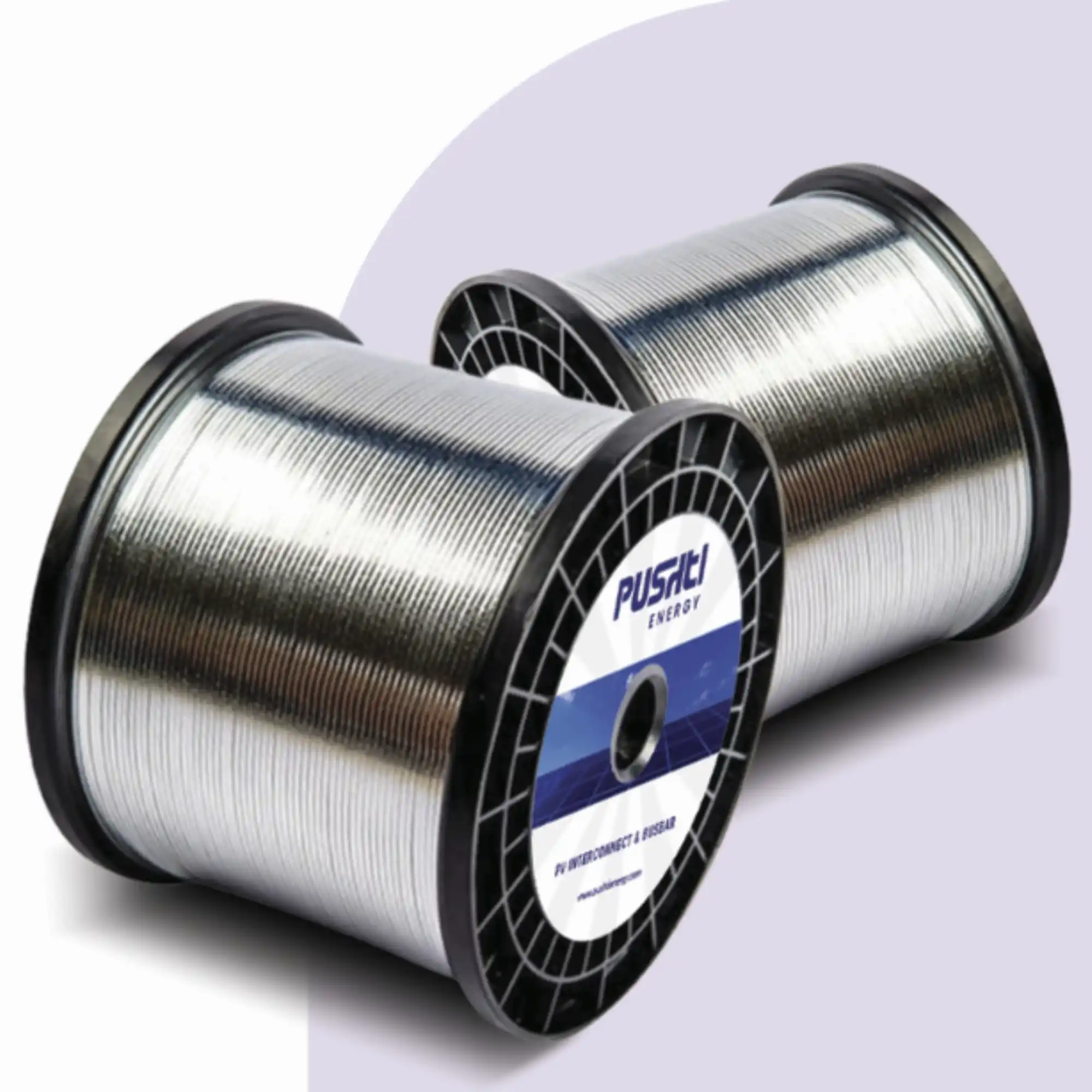

FLAT RIBBON
A thin, flexible tin or silver coated ribbon used to interconnect solar cells. It is soldered to the front and back of each cell, creating reliable series connections within a solar module.
- Width (mm) : 0.3 to 2
- Thickness(mm): 0.1 - 0.35
- Standard Coating : 16pm - 25pm (single side)

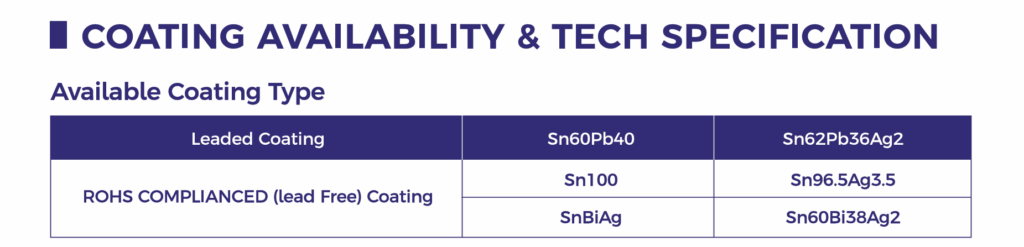

COATING AVAILABILITY & TECH SPECIFICATION
Leaded Coating
sn60Pb40
Sn62Pb36Ag2
ROHS COMPLIANCED (lead Free) coating
Sn100
SnBiAg
Sn96.5Ag3.5
Sn60Bi38Ag2

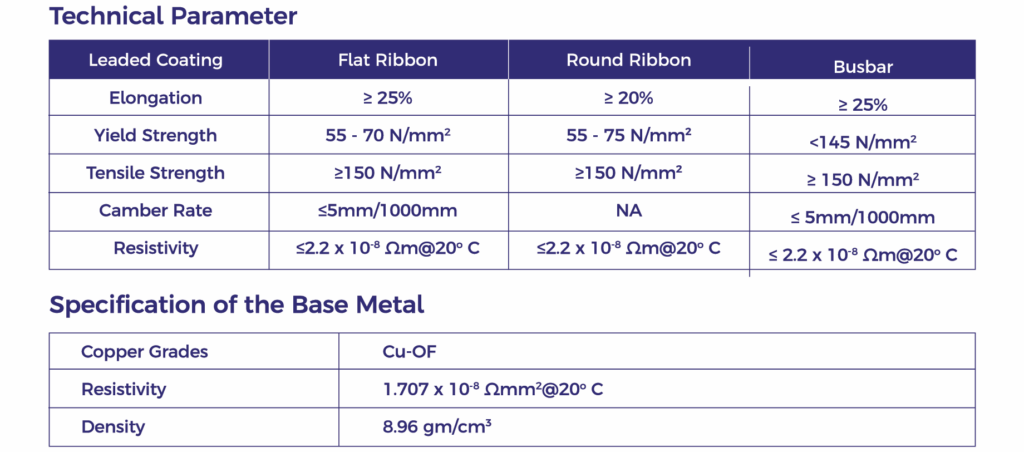

Technical Parameter
Leaded Coating
- Elongation
- Yield Strength
- Tensile Strength
Flat Ribbon
- ≤ 25%
- 55 - 70 N/mm²
- ≥ 150 N/mm²
- ≤ 5mm/1000mm
- ≤ 2.2 x 10⁻⁸ Ωm@20° C
Specification of the Base Metal
- Copper Grades
- Resistivity
- Density
- Cu-OF
- 1.707 x 10⁻⁸ Ωmm²@20° C
- 8.96 gm/cm³

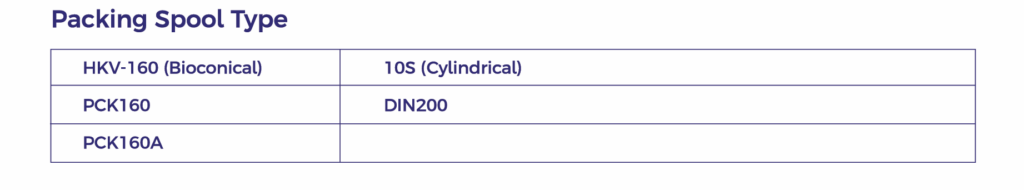

Packing Spool Type
- HW-160 (Bioconical)
- PCK160
- PCK160A
- 1 OS (Cylindrical)
- DIN200
